Transfer Conveyor Size List
2024

Size	Channel	Truss	Drive	Motor
24 x 20 24 x 40 24 x 60 24 x 80 24 x 100 24 x 120	P.O.R. P.O.R. P.O.R. P.O.R. P.O.R. P.O.R.	P.O.R. P.O.R. P.O.R. P.O.R. P.O.R. P.O.R.	#2 #3 #3 #4 #4 #5	3 HP 5 HP 7.5HP 10 HP 10 HP 15 HP

Size	Channel	Truss	Drive	Motor
30 x 20 30 x 40 30 x 60 30 x 80 30 x 100 30 x 120	P.O.R. P.O.R. P.O.R. P.O.R. P.O.R. P.O.R.	P.O.R. P.O.R. P.O.R. P.O.R. P.O.R. P.O.R.	#2 #3 #4 #4 #4 #5	5 HP 7.5HP 10 HP 10 HP 10 HP 15 HP

Size	Channel	Truss	Drive	Motor
36 x 20 36 x 40 36 x 60 36 x 80 36 x 100 36 x 120	P.O.R. P.O.R. P.O.R. P.O.R. P.O.R. P.O.R.	P.O.R. P.O.R. P.O.R. P.O.R. P.O.R. P.O.R.	#2 #3 #4 #4 #5 #5	5 HP 7.5HP 10 HP 15 HP 20 HP 20 HP

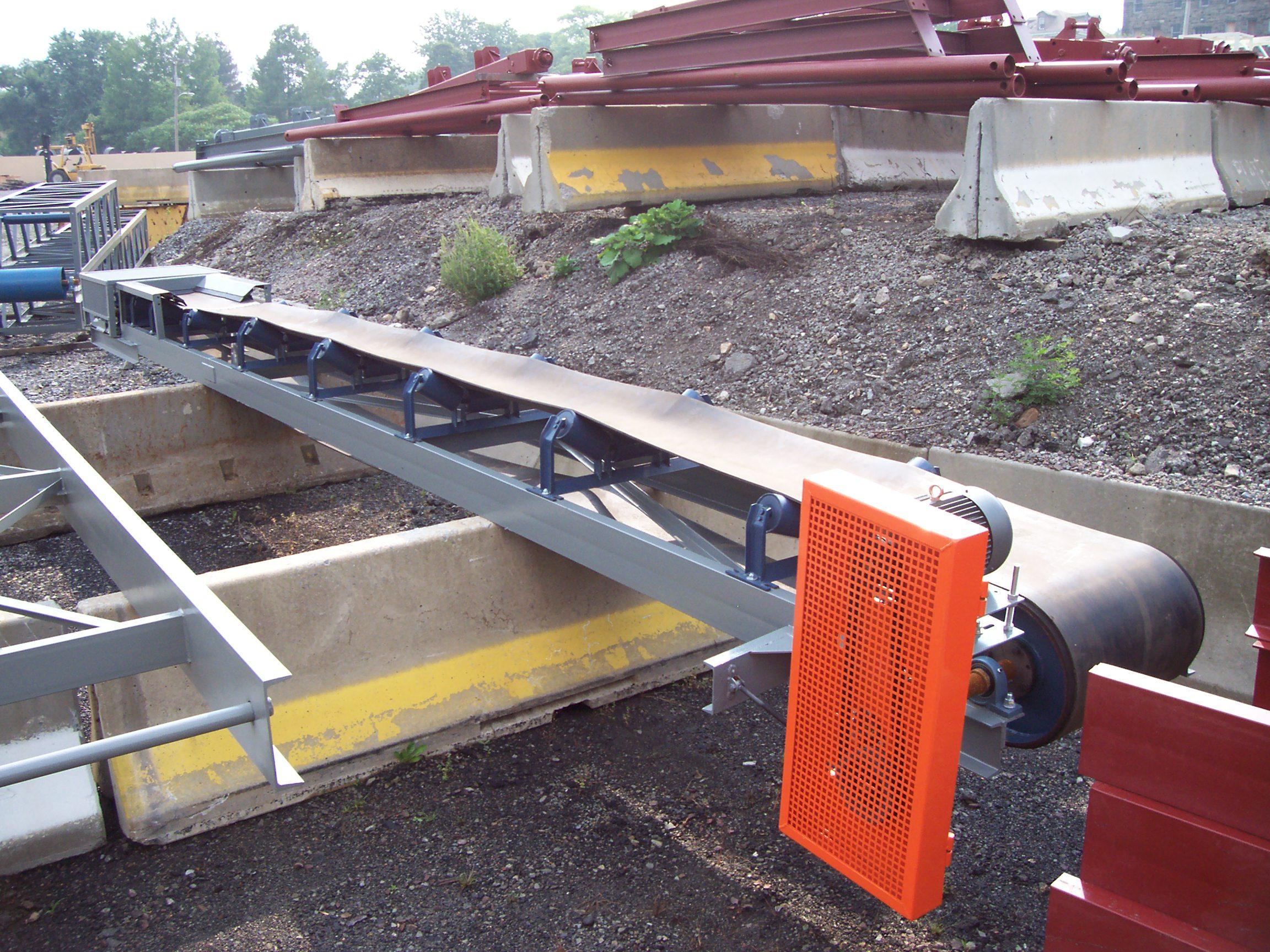

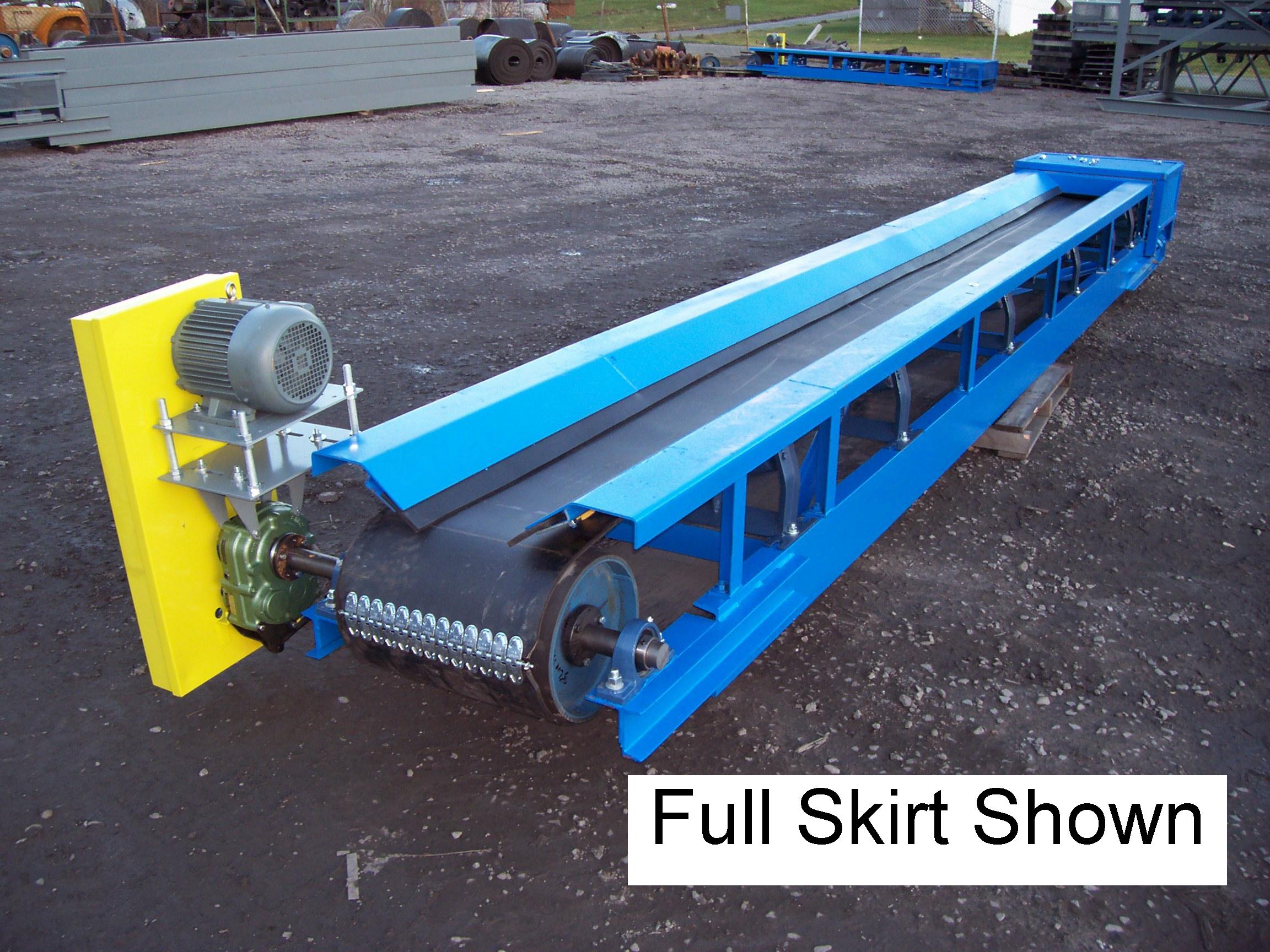

Channel Conveyors:
8" C-Channel Frame, 4" C-Channel Laterals & 2 x 2 x 1/4 Angle Cross Bracing.

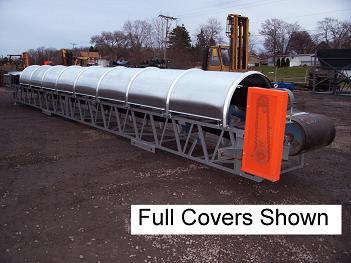

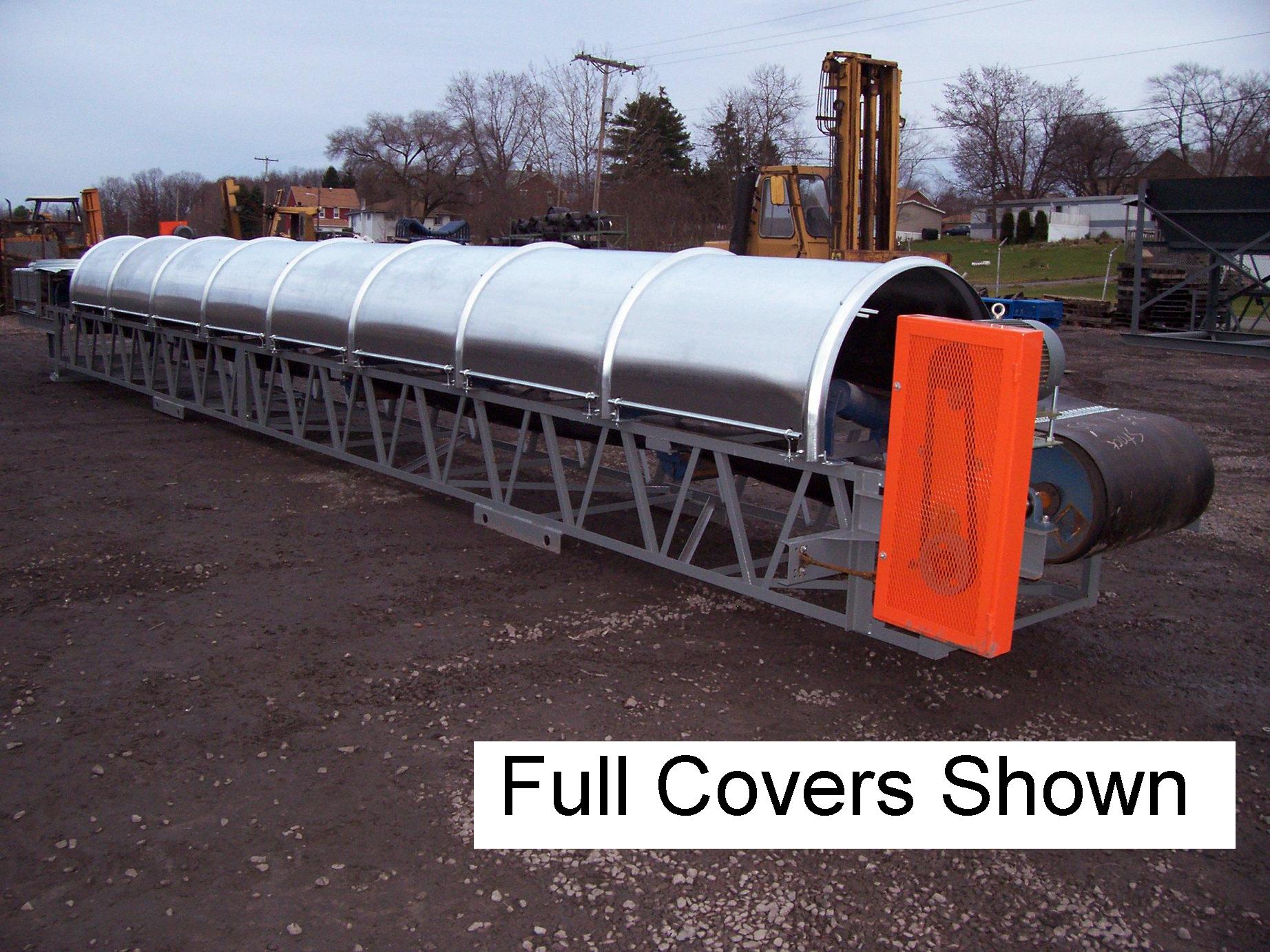

Truss Conveyors:
24" Deep Truss, 2 x 2 x 1/4 Cord Angle, 1 1/2 x 1 1/2 x 3/16 Lattice.
36" and 48" Truss also available.

All Conveyors Equipped with the Following:

Optional Equipment:

Provided Guarding may not satisfy local, state or federal requirements. Customer should consult their local inspector or relevant authority.

Customer Responsible for Motor & Reducer Sizing unless specifically specified by Manufacturer.
