Conveyor Specifications


Conveyor Incline Chart


Elevation in Feet

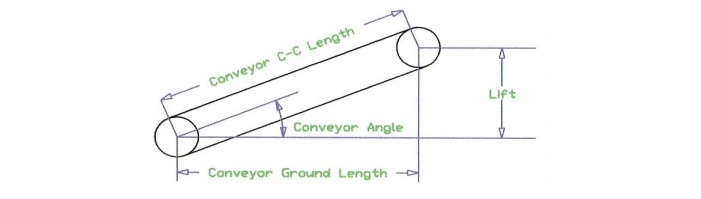

BASED ON CONVEYOR C TO C LENGTH

Conveyor Center to Center Length (Feet)

Angle

10

20

30

40

50

60

70

80

90

100

120

140

160

180

2

2

2

2

3

3

4

4

5

6

6

                                  LIFT

4

2

3

4

4

5

6

6

7

8

10

12

13

6

2

3

4

5

6

7

8

9

11

13

15

17

19

8

3

4

6

7

8

9

10

12

14

17

19

22

25

10

2

3

5

7

8

10

12

14

15

17

21

24

28

31

12

2

4

6

8

10

12

15

17

19

21

25

29

33

37

14

2

5

7

10

12

15

17

19

22

24

29

34

39

44

16

3

6

8

11

14

17

19

22

25

28

33

39

44

50

18

3

6

9

12

15

19

22

25

28

31

37

43

49

56

20

3

7

10

14

17

21

24

27

31

34

41

48

55

62

22

4

7

11

15

19

22

26

30

34

37

46

52

60

67

24

4

8

12

16

20

24

28

33

37

41

49

57

65

73

200

225

250

275

300

350

400

450

500

600

700

800

900

1000

2

7

8

9

10

11

12

14

16

18

21

25

28

32

35

                                  LIFT

4

14

16

18

19

21

25

28

32

35

42

49

58

63

70

6

21

24

26

29

32

37

42

47

53

63

74

84

95

105

8

28

31

35

38

42

49

56

63

70

83

97

111

125

139

10

35

39

46

49

52

61

70

78

87

104

121

138

157

174

12

42

47

52

57

62

73

83

94

104

125

146

166

187

208

14

48

54

61

67

73

85

97

109

121

145

166

194

218

16

56

62

69

76

83

97

116

124

138

166

193

221

18

62

69

44

85

93

108

124

139

155

185

216

20

68

77

86

94

103

120

137

154

171

205

22

75

84

94

103

113

131

150

169

188

225

24

81

92

102

112

122

142

163

183

203



BASED ON CONVEYOR GROUND LENGTH

Ground Length Center to Center (Feet)

Angle

10

20

30

40

50

60

70

80

90

100

120

140

160

180

2

2

2

2

3

3

4

4

5

6

6

                                  LIFT

4

2

3

4

4

5

6

6

7

8

10

11

13

6

2

3

4

5

6

7

8

10

11

13

15

17

19

8

3

4

6

7

8

10

11

13

14

17

20

22

25

10

2

4

5

7

9

11

12

14

16

18

21

25

28

32

12

2

4

6

9

11

13

15

17

19

21

26

30

34

38

14

3

5

7

10

12

15

17

20

22

25

30

35

40

45

16

3

6

9

11

14

17

20

23

26

29

34

41

46

52

18

3

6

10

13

16

19

23

26

29

32

39

45

52

58

20

4

7

11

15

18

22

25

29

33

36

44

51

58

66

22

4

8

12

16

20

24

28

32

36

40

48

57

65

73

24

4

9

13

16

22

27

31

36

40

45

53

62

71

80

200

225

250

275

300

350

400

450

500

600

700

800

900

1000

2

7

8

9

10

11

12

14

16

18

21

24

28

31

35

                                  LIFT

4

14

16

18

19

21

24

28

31

35

42

49

56

63

70

6

21

24

26

29

32

37

42

47

53

63

74

84

96

106

8

28

32

35

39

42

49

55

63

70

84

98

112

126

141

10

35

40

44

48

53

62

71

79

88

106

123

141

169

176

12

43

48

53

58

64

74

85

96

106

128

149

170

191

213

14

50

56

66

69

75

87

100

112

125

150

175

200

16

57

65

72

79

86

100

115

129

143

172

200

18

65

73

81

90

97

114

130

146

162

195

227

20

73

82

91

100

109

127

146

164

182

218

22

81

91

101

111

121

141

162

182

202

24

89

100

111

122

134

156

178

200



Belt Capacity Chart


The following conveyor belt capacity charts show tons per hour (TPH) based on material weighting 100 lbs. per cubic foot, 20° material surcharge angle with three equal length rools on troughing idlers.


CAPACITY (TPH) = .03 x Belt Speed (FPM) x material weight (lb. per cu. ft.) x load cross section (sq. ft.)


TPH with 20° Troughing Idlers

BELT WIDTH.IN INCHES

BELT SPEED IN FEET PER MINUTE (FPM)

100

150

200

250

300

350

400

450

500

550

600

650

16

42

63

84

105

125

147

166

18

54

80

110

135

160

190

218

243

270

24

100

150

200

250

300

350

400

450

500

550

600

30

160

240

320

400

480

560

640

720

800

880

960

1040

36

235

350

470

585

700

820

935

1050

1170

1290

1400

1520

42

330

495

660

825

980

1155

1320

1485

1650

1815

1980

2140

48

440

660

880

110

1320

1540

1760

1980

2200

2420

2640

2860

54

570

855

1140

1420

1710

2000

2280

2560

2850

3130

3420

3700

60

720

1080

1440

1800

2160

2520

2800

3240

3600

3960

4320

4680


TPH with 35° Troughing Idlers

BELT WIDTH.IN INCHES

BELT SPEED IN FEET PER MINUTE (FPM)

100

150

200

250

300

350

400

450

500

550

600

650

18

66

100

135

170

200

235

270

305

338

24

125

187

250

310

380

435

500

560

625

685

750

30

200

300

400

500

600

700

800

900

1000

1100

1200

1300

36

300

450

600

750

900

1050

1200

1350

1500

1650

1800

1950

42

420

635

845

1060

1270

1480

1690

1900

2120

2320

2540

2750

48

560

845

1125

1400

1690

1970

2250

2530

2810

3090

3370

3660

54

740

1110

1480

1850

2200

2600

2960

3340

3700

4080

4450

4820

60

935

1400

1870

2340

2800

3280

3740

4200

4680

5150

5610

6100


TPH with 45° Troughing Idlers

BELT WIDTH.IN INCHES

BELT SPEED IN FEET PER MINUTE (FPM)

100

150

200

250

300

350

400

450

500

550

600

650

24

145

217

290

360

435

508

580

650

725

795

870

30

232

348

465

580

695

810

930

1040

1160

1270

1390

1500

36

335

510

680

850

1020

1190

1360

1530

1700

1860

2040

2200

42

478

720

960

1200

1440

1680

1910

2150

2390

2630

2870

3110

48

640

955

1275

1600

1910

2230

2550

2870

3190

3500

3820

4150

54

830

1240

1655

2070

2480

2900

3310

3720

4140

4550

4960

5380

60

1040

1570

2090

2610

3130

3660

4180

4700

5220

5740

6260

6800


BELT WIDTH IN INCHES

MAXIMUM SIZE OF LUMPS * (INCHES)

MAXIMUM BELT SPEEDS IN FEET PER MINUT (FPM)

EQUAL.SIZE LUMPS

MIXED.WITH 90% FINES

LIGHT.FREE.FLOWING MATERIAL.AS.GRAIN, PULVERIZED.COAL.50 LB./CU..FT.

AVERAGE.MATERIAL.AS SAND,.GRAVEL,.STONE, COAL,.FINE.ORE.100 LB./CU..FT.

ABRASIVE.MATERIAL.AS COAL,.SCREENED.LUMP COKE.30.TO.50 LB./CU..FT.

16

2

4

500

400

350

18

3

5

500

500

400

24

5

8

600

600

450

30

6

11

700

650

500

36

8

15

800

650

500

42

10

18

800

650

500

48

12

21

800

650

500

54

14

24

800

650

500

60

16

28

800

650

500

* Based on 20° Troughing Idlers and 100 Lb. Per Cu. Ft. Material.

Conversion: Cu. Ft. = BPH x 1.25

Note: Capacities of flat belts are taken at one-half of those listed above.



Volumes of Conical and Circular Shaped Stockpiles

Dimensions.in.Feet

Conical.Pile.Volume

Volume.for.One.Degree.Arc

90°.Stockpile.Volume

L

R

H

r

C.Y.

Tons

C.Y.

Tons

C.Y.

Tons

40
50
60
70
80
90
100
110
120
130
140
150
170
190

39
48.5
58
67.5
77
87.5
96.5
105.5
115.5
125
134.5
144
162
181

14
17.5
20.5
24.5
27.5
30
32.5
35.5
38.5
41.5
44.5
47.5
54
60

19
23
27
32.5
36.5
40
43
47
51
55
59
63
72
80

196
359
580
1,004
1,421
1,872
2,331
2,058
3,884
4,896
6,041
7,312
10,670
14,800

265
485
783
1,355
1,918
2,527
3,145
4,128
5,243
6,610
8,156
9,871
14,400
20,000

6.5
12.8
21
35
50.2
68
87.8
114.6
147.6
185.6
229.6
280
400
560

8.8
17.3
28.4
47
67.8
91.6
118.6
154.7
199.2
250.5
310
378
540
760

781
1,511
2,470
4,154
5,939
1,992
10,233
13,372
17,168
21,600
26,705
32,512
46,820
65,000

1,057
2,042
3,339
5,585
8,020
10,771
13,819
18,051
23,171
29,155
36,056
43,891
63,210
87,800

Calculated volumes are in cubic yards.

Tons are based on 100 lbs. per. Cu. Ft. material, conveyor incline 18 stockpile angle of repose 37.

Live Storage at center of pile is theoretically 25% of the total volume


1.   Volume of conical pile = V₁

      Where radius of pile (r) and height of

      pile (h) are known: V₁ = r²H (.039)


      Where height of pile (H) and slant length of side

      of pile (s) are known: V₁ = H (S²-H²) (.039)


      Where slant length of side of pile (s) and

      angle of repose ∅ are known:

      V₁₁ = S³ (cos ∅)² √1 - (cos ∅)² (.039)

      Where height of pile (H) and angle

      of repose (∅) are known:

      V₁ = H3(.039)/(tan ∅²)

2.   Volume of a 1° arc segment of stockpile = V₂

      a.   Where height of pile (H), distance between center line

             of pile and center line of conveyor pivot (R) are

             known, and angle of repose ∅ is equal to 37° V₂ = H²R/1160

      b.   For other angles of repose V₂ = H²R/(1547) (tan ∅)

3.   Degrees of arc of stockpile with known arc lengths = ⊖.

      Where diameter of stockpile (D) and arc length (A) are known:

      ⊖ = (114.6)A/D



Copyright © 2020 Portable Stackers, LLC, All Rights Reserved.
